Laser scanner

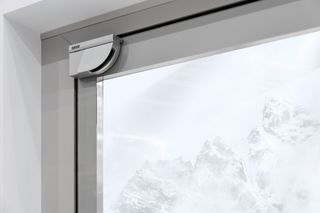

GC 342 Laser scanner for the protection of automatic doors and windows with integrated object and wall blanking

GC 342 Laser scanner, Single sensor left compact safety sensor, safeguarding
  • Compact and space-saving safety sensor
  • Narrow detection area secures door leaf widths up to max. 1600 mm
  • Integrated object and wall blanking near maximum door opening
  • Protection area on the main closing edge is automatically expanded depending on the door angle
  • Automatized teaching of the system with the push of a button
  • Avoidance of hazards at pinching and shearing edges on automated windows
Contact us

Application Areas

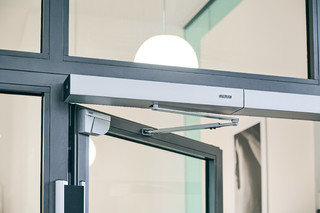

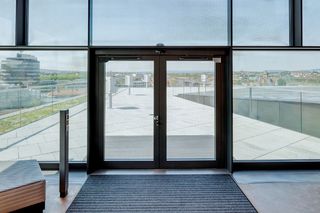

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Use on doors up to 1600 mm leaf width
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Use on doors with continuous vertical pull handle
  • Protection of the main and secondary closing edges on automated windows

Technical data

GC 342

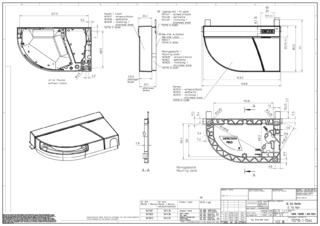

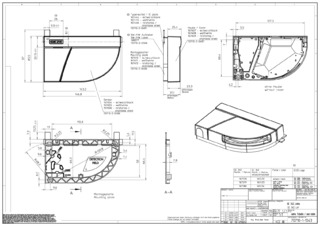

Dimensions 143 x 86 x 40 mm
Technology Laser scanner, time-of-flight measurement
Number of active infrared detectors 1
Operating voltage 12-24 V DC ± 15%
Output 2 potential-free relay contacts
IP rating IP54
Connector cable length 2500 mm
Installation height (min.) 1500 mm
Installation height (max.) 3870 mm
Reaction time Door leaf safety: < 50 ms / pinch zone safety: < 90 ms
Service temperature -30 - 60 °C
Humidity 0-95 % relative, non-condensing
Standard conformity DIN 18650, EN 16005
