Building automation systems

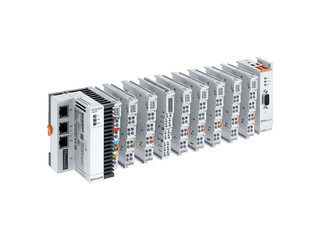

myGEZE Control with GEZE CAN bus, I/O technology and KNX * Controller system to connect GEZE CAN products and non bus-capable components as well as KNX/EIB components

myGEZE Control
  • System consists of: basic device, 8-channel digital input terminal, 24 V DC potential distribution terminal, power supply terminal, 2-channel relay output terminal, 4-channel relay output terminal, CAN master terminal, CAN connectors, E-Bus coupler, 2x KNX/EIB terminals, bus end terminal
  • System is also available without CAN master terminals and digital input and output terminals
  • Compact I/O systems can also be installed in distribution box systems
  • Integration into a KNX system makes it possible to collect data via a weather station
  • Comprehensive, project-specific configuration according to user specifications possible (system designation, comment texts, status texts)
  • Time functions and grouped switching commands configurable via scene applications
Show more
  • BACnet alarm concept integrated, can be adjusted to customer-specific requirements
Contact us

BACnet Building Controller with modular terminal to connect up to 63 CAN bus devices, 80 digital input signals (24 V DC), 40 digital output signals (relays), GEZE KNX system with IQ box KNX

Application Areas

  • BACnet IP integration in building management systems
  • Networking of GEZE products that can be connected with CAN bus technology
  • Networking of non BUS capable components via digital input and output terminals
  • Networking of KNX capable GEZE window drives in the building management system
  • Products suitable for emergency exit systems: TZ 320, TZ 321 and TZ 322
  • Products suitable for automatic door drives: Slimdrive, Powerturn, TSA 325 NT and Revo.PRIME
  • Products suitable for smoke and heat extraction systems: MBZ 300 in different versions
  • Products suitable for window systems: Slimchain, Powerchain, F 1200+ and locking systems
  • For products with I/O technology like GEZE hold-open systems and third-party products
Go to campaign page
