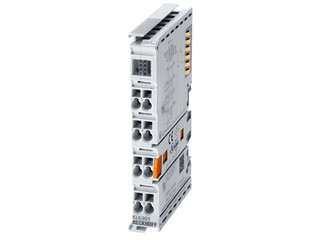

myGEZE Control KNX/EIB terminal * EIB/KNX bus terminal for connection to the KNX/EIB network
- Data transfer standard Twisted Pair (TP), data transfer rate 9600 Baud
- Status LEDs indicate the bus status directly
- Number of max. group addresses corresponds to the max. connectable IQ box KNX modules
Application Areas
- For use with the IQ box KNX interface module
- Connection of the Slimchain, Powerchain, E 250 NT and F 1200+ window drives
- Data exchange between KNX/EIB devices
- Two EIB/KNX bus terminals (transmitter, receiver) are required for an IQ box KNX
Installation situations in reference objects and videos
myGEZE Control
myGEZE Control takes building automation to a new level – optimally aligned with your requirements. For improved safety, sustainable processes, and better comfort.
Technical data
| myGEZE Control KNX/EIB terminal | |
| Dimensions | 12 x 100 x 68 mm |
| Service temperature | -10 - 40 °C |
| Type of installation | Top hat rail mounting |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
