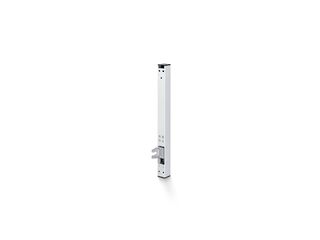

Power lock * Locking drive in combination with Slimchain, Powerchain or E 250 NT
- System solution for locking in combination with Slimchain, Powerchain and E 250 NT window drives from the the IQ windowdrive series
- Automatic locking of the window through access to the window transmission
- Meets high specifications in terms of wind load, sealing in the event of rain and air tightness
- Electronic position detection that unlocks the window before opening it
- Electronic end-position cut-off offers protection against incorrect operation and overloading
- High tensile and compressive force for up to six locking points
- Locking and unlocking in six seconds
- Synchronization of up to two Power lock and four window drives from the IQ windowdrive series possible
- Tested in combination with window drives from the IQ windowdrive series in accordance with EN 12101-2 (SHEV)
Application Areas
- Additional safety and protection against weather conditions
- For natural ventilation, smoke and heat extraction systems, natural smoke and heat extraction device (SHEV)
- Can be used in the exhaust air and air intake
- Inward-opening windows with bottom-hung, side-hung, top-hung, swing and vertically centre pivoted leaves
- Installation on wooden, PVC or metal windows
- Leaf or frame installation

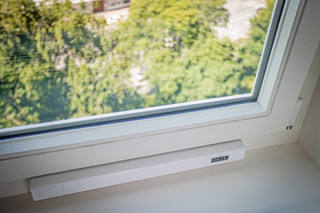

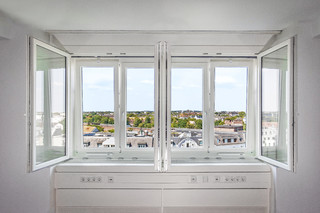

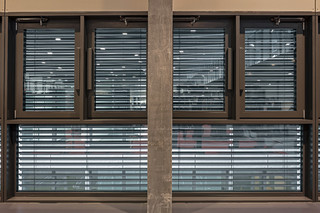

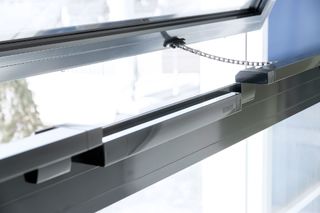

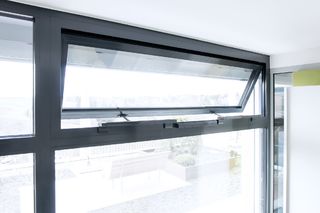

Installation situations in reference objects and videos
Technical data
Power lock | |
Dimensions | 430 x 34 x 36 mm |
Space needed on frame (min.) | Necessary space should be determined individually |
Space requirement on leaf (min.) | Necessary space should be determined individually |
Opening speed ventilation | 3.6 mm/s |
Compressive force | 600 N |
Tensile force | 600 N |
Voltage at operation | 24 V ± 25 % |
Operating voltage | 24 V DC |
Current consumption | 1.5 A |
Power consumption | 36 W |
Duty rating | 30 % |
Connector cable length | 2 m |
Special length of connector cable | 5 m, 7.5 m |
Min. core cross section | 0.75 mm² |
Number of cores | 4 cores |
Service temperature | -5 - 70 °C |
IP rating | IP42 |
protection rating | III |
Adjustable opening speed (ventilation) | Yes |
SHEV tested | Yes |
KNX ability | Yes |
Bottom-hung window INWARD-opening frame installation | Yes |
Bottom-hung window INWARD-opening leaf installation | Yes |
Side-hung window INWARD-opening frame installation | Yes |
Side-hung window INWARD-opening door leaf installation | Yes |
Top-hung window INWARD-opening frame installation | Yes |
Top-hung window INWARD-opening leaf installation | Yes |
