TS 5000 E

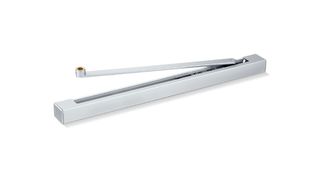

E guide rail TS 5000 * with electric hold-open device and lever
- Electric hold-open device in the guide rail with hold-open area of 80°-130°
- Retention force of the electromechanical hold-open device can be variably adjusted
- Operating voltage 24 V DC
- Height compensation of +/- 2 mm possible
- With screwed slide block
Application Areas
- Single leaf doors
- Hold-open systems with integrated hold-open device
- Installation on hinge side
- Right and left single-action doors
Technical data
| E guide rail TS 5000 | |
| Input voltage | 24 V DC |
| Electrical power consumption | 2.4 W |
| Duty rating | 100 % |
| Residual ripple | 20 % |
| IP rating | IP43 |
| Standard conformity | EN 1155 |
| Length | 498.5 mm |
| Width | 40 mm |
| Height | 30 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Electrical |
| Hold-open device can be overridden | Yes |
| Hold-open range | 80 ° - 130 ° |
| Height correction possible | Yes |
| Flexible opening restrictor | Yes |
