TS 1500 G

Guide rail TS 1500 G * with lever

Guide rail TS 1500 G
  • Quick installation due to clip-on slide block
Buy now

Guide rail TS 1500 G

Application Areas

  • Single leaf doors
  • Installation on the hinge or opposite hinge side (only limited door leaf thicknesses)
  • Right and left single-action doors

Technical data

Guide rail TS 1500 G
Length 390 mm
Width 30.5 mm
Height 20.5 mm
opening restrictor upgradable Yes
Hold-open function Optional

Downloads

Product shot

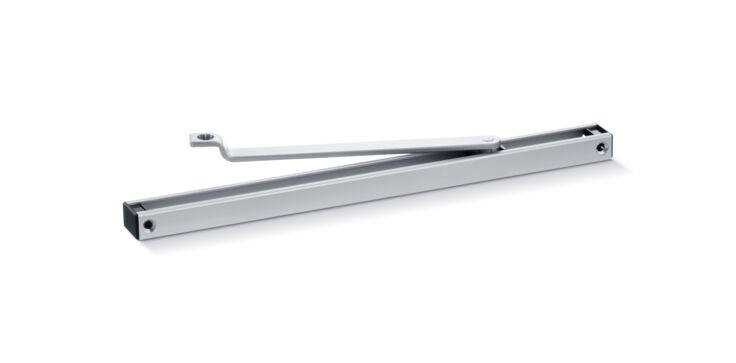

Guide rail TS 1500 G Product shot (73936)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH

Supplementary sheet

Supplementary sheet PL PT RO RU SK SL SV BG CS ZH DA DE EL EN ES ET FI FR HU IT LT LV MT NL (53762)
Download (.PDF | 560 KB)
Supplementary sheet DE EN (54064)
Download (.PDF | 764 KB)

Installation instructions

Installation instructions (54018)
Download (.PDF | 37 KB)
Installation instructions (53933)
Download (.PDF | 3 MB)

Installation drawing

Installation drawing (12547)
Download (.PDF | 68 KB)

Product data sheet

Download (.PDF | 507 KB)

Variants & Accessories

GEZE flexible opening restriction for lightweight doors
Accessories

Flexible opening restrictor

For riveted guide rail, standard guide rail BG, standard guide rail and Boxer 20.7 mm guide rail

Product details
GEZE mechanical hold-open unit
Accessories

Mechanical hold-open unit

For standard/T-Stop/Boxer 20.7 mm guide rail

Product details

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
