Programme switches

DPS * Display programme switch for setting the mode of operation for automatic doors

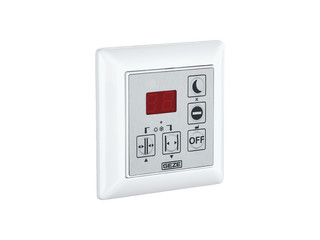

Display programme switch DPS Programme switches for parameter setting, commissioning and choosing the operating status of autom. doors
  • Unwanted mode of operation changes on escape and rescue route doors can be avoided via number code
  • Display programme switches are also available with key switches
  • 7-segment display shows mode of operations, maintenance info, and error display
  • OFF mode of operation supported by sliding door drives from V3.3
  • OFF mode of operation supported by Powerturn from V1.x
  • OFF mode of operation supported by Slimdrive EMD from V3.4
Show more
  • OFF mode of operation supported by TSA 160 NT from V3.1
Contact us

Application Areas

  • For changing the modes of operation of GEZE automatic door systems

Technical data

DPS
Dimensions 80 x 80 x 11 mm
Current consumption 60 mA
IP rating IP40
Type of installation Flush-mounted installation
Connector cable length 100 m
Service temperature -15 - 50 °C
