AS 500 * Manual trigger switch for the manual release of electrically controlled hold-open devices
- IP rating IP40
- Including terminating resistor for line monitoring
Application Areas
- Hold-open systems for manual release of the hold-open device
- Installation in the direct vicinity of the end plate
Installation situations in reference objects and videos
FA GC 170 - Example of a hold-open system
The new GEZE wireless kit allows you to connect the ceiling-mounted detectors and manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems wirelessly. It's easy to retrofit because it eliminates the need for separate cable routing. This makes planning much easier, in particular in listed buildings. © GEZE GmbH
EN | Fire protection | RSZ 7 + FA GC 170
// RSZ 7 The new RSZ 7 smoke switch control unit has an adjustable telescopic function and is therefore a flexible solution for early detection of fires even in unfavourable lintel situations, for example where there is little room left over the smoke chamber. // FA GC 170 The GEZE FA GC 170 wireless extension connects the ceiling-mounted detector and manual trigger switch wirelessly with the lintel-mounted detector of GEZE hold-open systems.
Technical data
| AS 500 | |

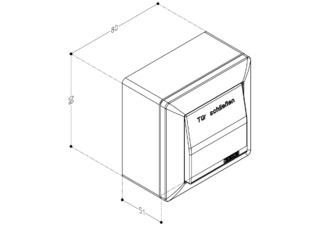

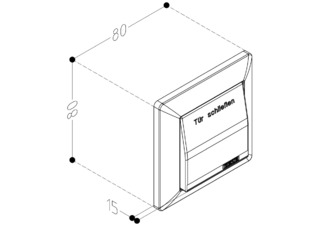

| Dimensions | 80 x 80 mm |
| Switching voltage | 250 V |
| Switching current | 10 A |
| IP rating | IP20 |
| Type of installation | Surface-mounted, Flush-mounted installation |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
