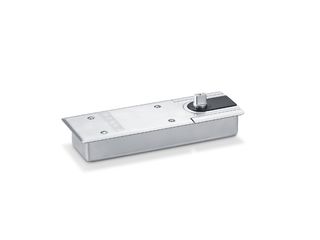

Floor spring 1-leaf
TS 500 NV KIT with hold-open function * Floor spring for single and double leaf doors up to 1100 mm leaf width with adjustable closing force EN1-4 and hold-open function
- Closing force EN 1-4 with variable adjustment
- Can be used for right and left hand doors without conversion
- Closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Integrated back check, slows down doors that are thrown open forcefully
- All functions can be adjusted from above and in the installed state
Application Areas
- Fire and smoke protection doors
- Single and double leaf right and left single-action doors
- Single- and double-action doors up to 1100 mm leaf width and 150 kg weight
- Floor mounting, concealed
Technical data
| TS 500 NV KIT with hold-open function | |
| Suitability for fire protection doors | Yes |
| Use on single-/double-action door | Double-action door, Single-action door |
| Type of installation | Floor |
| Opening angle (max.) | 170 ° |
| Leaf width (max.) | 1100 mm |
| Leaf weight (max.) | 150 kg |
| DIN direction | left / right |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Mechanically fixed |
| Position of closing force adjustment | Top |
Downloads
TS 500 NV EN 1-4
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
