Combined detector

GC 365 * Combined detector for activating and protecting automatic sliding doors with four different infrared light curtain configuration settings

GC 365 Combined detectors GC 365 R Combined detectors, GC 365 SF Combined detectors
  • Radar movement detector with infrared light curtain and third presence detector
  • Reliable detection up to an installation height of 3500 mm
  • Four adjustable light curtain configurations without additional light prisms
  • Fewer total sensors are required due to the large detection area on the floor
  • Look back function secures the area between the door leaves during the hold-open time
  • Installation and parameter setting information provided directly in the sensor housing
Show more
  • All settings can be conveniently made by DIP switch
Contact us

Combined detector for activating and protecting automatic sliding doors with four different infrared light curtain configuration settings

Application Areas

  • Activation and protection of automatic sliding doors
  • Interior and exterior doors

Technical data

GC 365

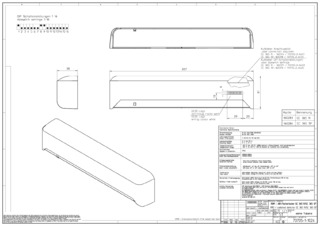

Dimensions 267 x 61 x 38 mm
Technology Electromagnetic radar waves/active infrared beams
Number of active infrared detectors 3
Operating voltage 12-30 V DC / 12-24 V AC
Operating current 100 mA
IP rating IP54
Cable connection type System plug-type connector
Connector cable length 3000 mm
Installation height (min.) 2000 mm
Installation height (max.) 3500 mm
Weight 270 g
Service temperature -20 - 55 °C
Humidity 0-80 % relative, non-condensing
Standard conformity DIN 18650, EN 16005
