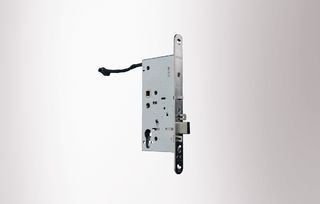

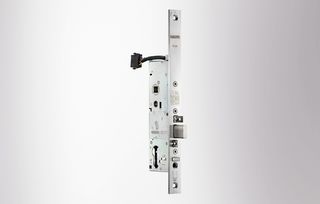

IQ lock EM * Electro-mechanical lever lock for the combination with access control systems on single leaf doors
- Mechanical self-locking ensures automatic crossbar projection every time the door is closed
- Panic function which opens (even locked) emergency exits in the direction of escape
- Divided cross latch prevents the bolt from locking even under side-load
- External door handle is decoupled from the lock mechanism
- Integrated feedback contacts make complete monitoring of the door possible
- Optional sabotage monitoring or cylinder contact
Application Areas
- Single leaf emergency exit and panic doors
- Doors along escape and rescue routes
- Fire and smoke protection doors
- Access control systems
Technical data
| IQ lock EM | |
| DIN direction | left / right |
| Service temperature | -10 - 50 °C |
| Supply voltage | 12 V DC, 24 V DC, 48 V DC |
| Panic function / mechanical self-locking | Yes |
| Divided cross latch (3 mm gap between latch and bolt) | Yes |
| Outside handle, can be electrically engaged | Yes |
| Feedback contacts for lock states | Yes |
| Optional sabotage monitoring or cylinder contact | Yes |
| Activation | External contact |
| Current consumption | 210 mA at 24 V, 420 mA at 12 V |
| Contact rating | 30 V / 500 mA |
| Resistant to forcing | 10000 N |
| Connector cable length | 15 m |
